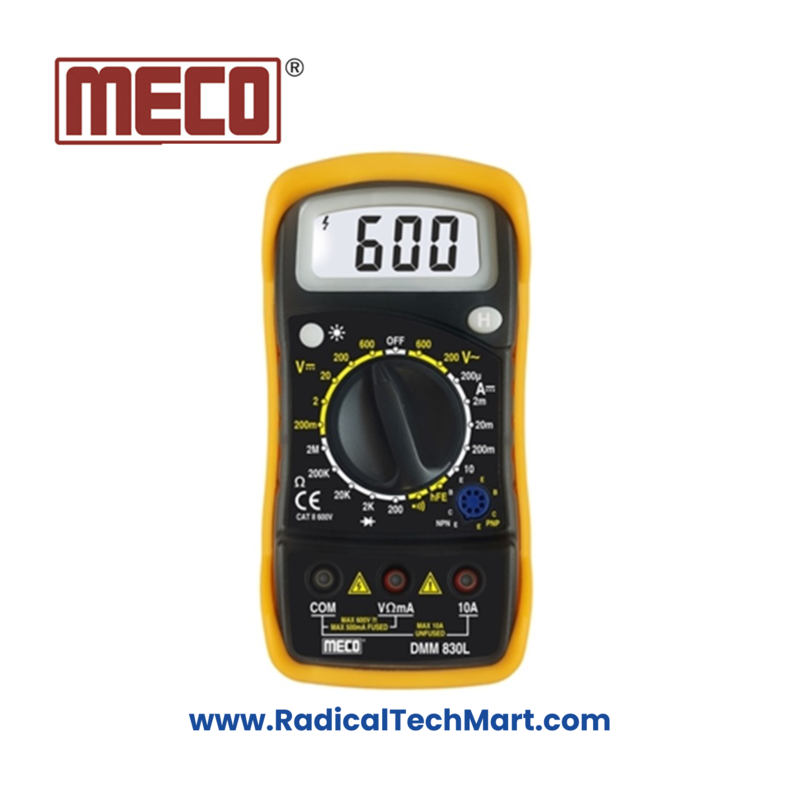

MECO 830L Digital Multimeter

Features:

• Display: 3½ Digits, 2000 Counts LCD with backlight
• Measurement Functions:
  • DC Voltage (up to 600V)
  • AC Voltage (up to 600V)
  • DC Current (up to 10A)
  • Resistance (up to 2MΩ)
  • Audible Continuity
  • Diode Test
  • hFE (Transistor) Test
  • Data Hold
• Audible Continuity Test: Emits sound for quick checking of continuity.
• Low Battery Indication: Alerts when the battery is low.

Specifications:

• DC Voltage:

  • Ranges: 200mV / 2V / 20V / 200V / 600V
  • Accuracy:
    • ±(0.5% rdg + 3 dgt) at 200mV
    • ±(0.8% rdg + 5 dgt) at 2V, 20V, 200V
    • ±(1.0% rdg + 5 dgt) at 600V

• AC Voltage:

  • Ranges: 200V / 600V (45-450Hz)
  • Accuracy: ±(2.0% rdg + 10 dgt)

• DC Current:

  • Ranges: 200µA / 2mA / 20mA / 200mA / 10A
  • Accuracy:
    • ±(1.8% rdg + 2 dgt) at 200µA, 2mA, 20mA
    • ±(2.0% rdg + 2 dgt) at 200mA
    • ±(2.0% rdg + 10 dgt) at 10A

• Resistance:

  • Ranges: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ
  • Accuracy:
    • ±(1.0% rdg + 4 dgt) for most ranges
    • ±(1.0% rdg + 10 dgt) at 200Ω

• Special Functions:

  • Audible Continuity
  • Diode Test
  • hFE (Transistor) Test

Power:

• Operates on one 9V battery
• Battery Life: Approximately 200 hours (typical)

Dimensions:

• Size: 145 x 76 x 43 mm (approx.)

Warranty:

• As per brand policy
